UTS MPa
530M.S Cellulosic Welding Electrodes
Designed For Stable Arc Performance, Smooth Weld Finish, Deep Penetration, And Reliable Welding Strength In Demanding Industrial Fabrication Applications.
CELLULOSIC

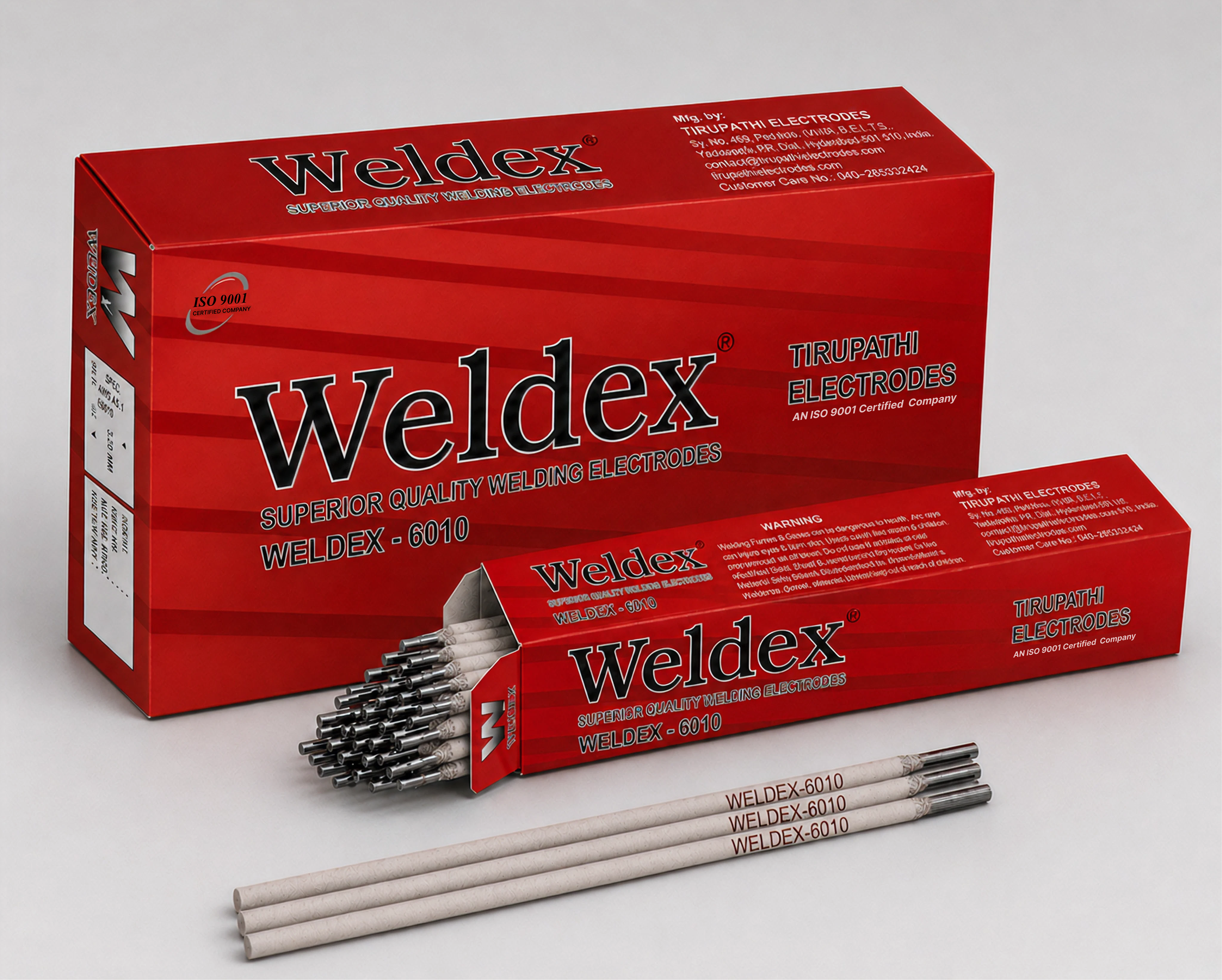

WELDEX-6010
Classification
AWS SFA 5.1: E-6010
Description
A cellulose coated high penetration electrode for pipe welding. Excellent root penetration. Easily removable slag. Radiographic quality weld. All Position Electrode including vertical down. Suitable for cross country, in-plant pipe welding, ship building and general structural steel.
Mechanical Properties
YS MPa
425Elongation%
26CVN impact
at -30°C - 45JWeld Metal Chemical Composition (%)
| C | Mn | Si | S | P |
|---|---|---|---|---|
| 0.12 | 0.55 | 0.32 | 0.012 | 0.014 |
Welding Parameters
| Size(mm) | 2.50 x 350 | 3.15 x 350 | 4.00 x 350 | 5.00 x 350 |
|---|---|---|---|---|
| Current(Amp.) | 50-90 | 80-140 | 120-180 | 160-200 |
Packing Data
| Ø x L, MM | Pcs / Pkt | Pkt / Box | Pcs / Box | Net Wt / Box (Kg) |
|---|---|---|---|---|
| 2.50 X 350 | 200 | 4 | 800 | 20 |
| 3.15 X 350 | 100 | 4 | 400 | 20 |
| 4.00 X 350 | 70 | 4 | 280 | 20 |
