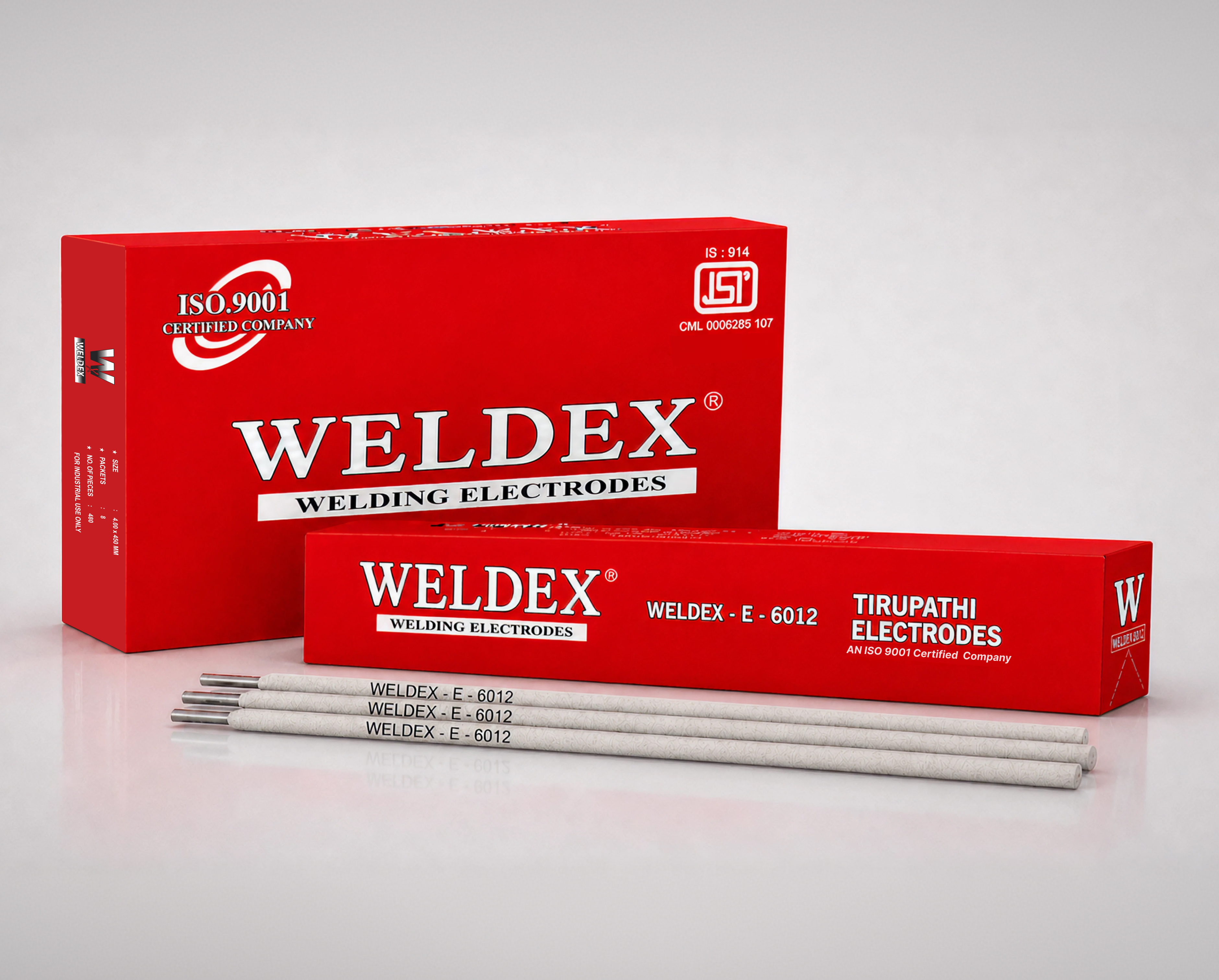

WELDEX-6012

a mild steel welding electrodes

classification : AWS SFA5.1: E-6012 IS:814 - ER 4112

description : A Light Coated, Rutile Type, Normal Penetration, All Position Steel Furniture Truck B0dies, Window Frames, Light structures etc.

Weld metal Chemical Composition

c	mn	si	p
0.10	0.45	0.20	0.030

All Weld Mechanical Composition Properties

UTS MPa 430

YS 0.2 430/330 (KG/mm²)39.6

Elongation (L=4d) %27.5

CVN impact strength at (Joules) 27°c 47J

Welding Parameters

Size(mm)

2.50 x 350

3.15 x 350

4.00 x 350

5.00 x 350

Current(Amp.)

60-90

90-130

130-170

170-210

Packing Data

O x L,MM	Pcs pre Pkt	Pkt Per Box	Pcs per BOX	Net.wt/BOX, Kg
2.50 X 350	125	12	1500	28
3.15 X 350	90	12	1080	30
4.00 X 450	60	12	720	42

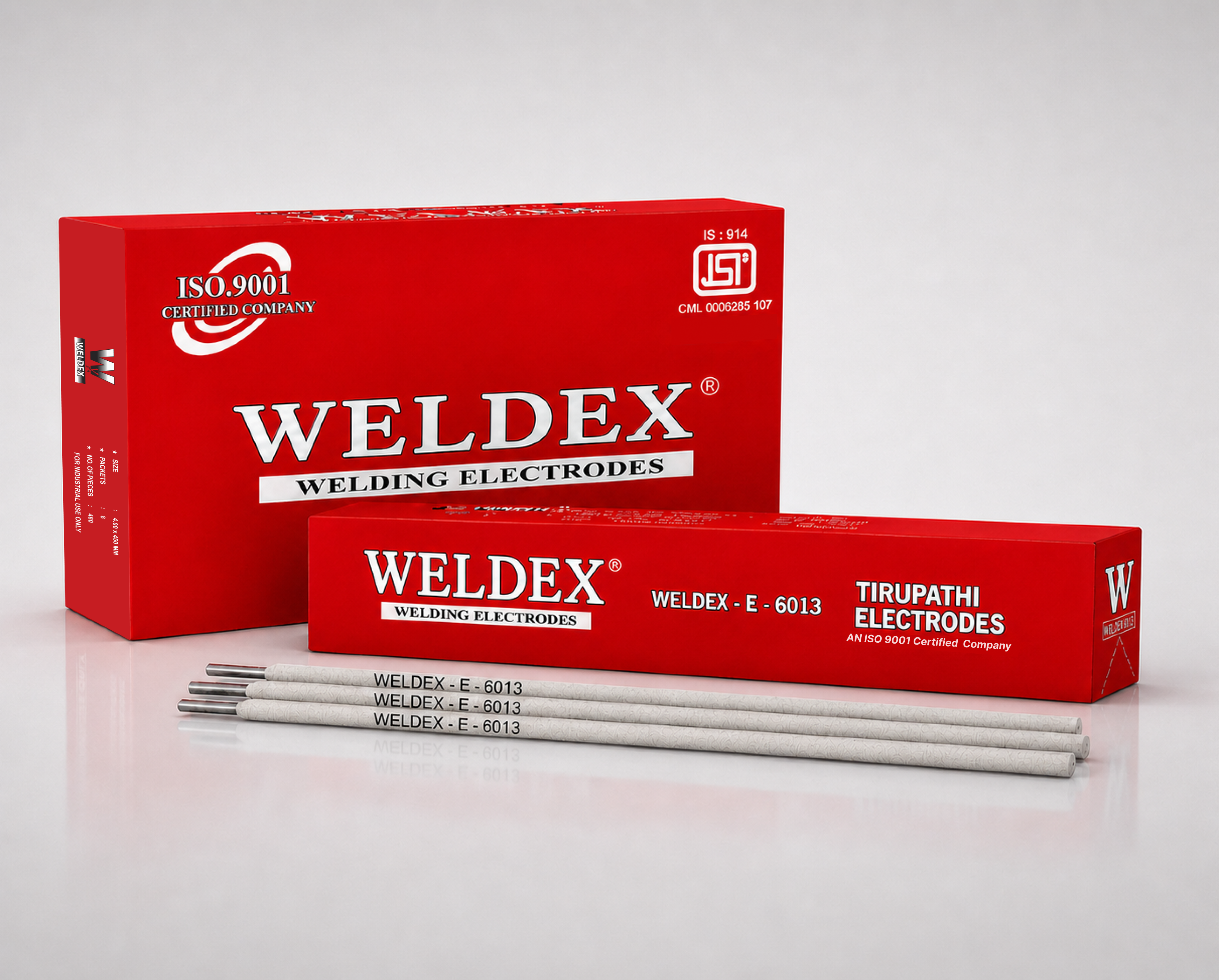

WELDEX-6013

a mild steel welding electrodes

classification : AWS SFA5.1: E-6013 IS:814 - ER 4211X

description : A Medium Coated, Rutile Type, Normal Penetration, All Position M.S. Electrode, Suitable Construction Work, Storage Tanks, Construction Machinery, Rail Coaches, Wagon, General Repairs & Maintenance

Weld metal Chemical Composition

c	mn	si	s	p
0.06 - 0.10	0.35 - 0.60	0.20 - 0.28	0.030	0.030 Max

All Weld Mechanical Composition Properties

Ultimate Tensile Strength 410-540 N/mm²

Yield Strength 360-440 N/mm²

Elongation (GL=5d) 22-26%

Impact (CVN) at 0° C 50-80 Joules avg

Welding Parameters

Size(mm)

2.50 x 350

3.15 x 350

4.00 x 350

5.00 x 350

Current(Amp.)

60-90

90-130

140-180

180-230

Packing Data

O x L,MM	Pcs pre Pkt	Pkt Per Box	Pcs per BOX	Net.wt/BOX, Kg
2.50 X 350	125	12	1500	28
3.15 X 350	90	12	1080	30
4.00 X 450	60	12	720	42

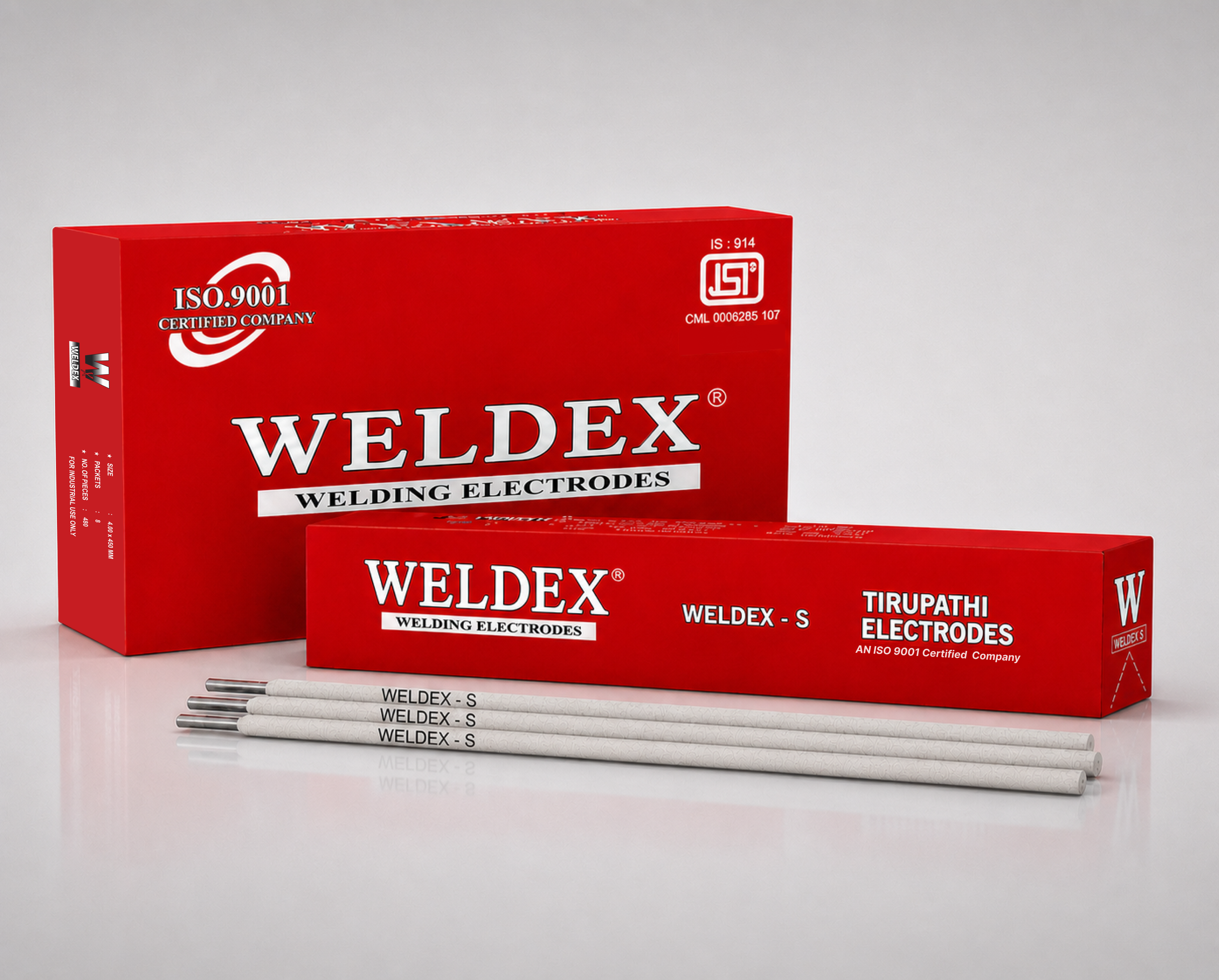

WELDEX-S

a mild steel welding electrodes

classification : AWS SFA5.1: E-6013 IS:814 - ER 4211X

description : A medium heavy coated, rutile type, radiographic quality Electrode, Suitable for heavy Structural work, Ship, Boilers, Pressure pipe lines, Oil tank, L.P.G. cylinders etc.

Weld metal Chemical Composition

c	mn	si	s	p
0.085	0.50	0.21	0.020	0.025

All Weld Mechanical Composition Properties

Ultimate Tensile Strength 430-540 N/mm²

Yield Strength 360-440 N/mm²

Elongation (GL=5d) 22-30%

Impact (CVN) at 0° C 50-70 Joules avg

Welding Parameters

Size(mm)

2.50 x 350

3.15 x 350

4.00 x 350

5.00 x 350

Current(Amp.)

60-90

90-130

130-170

170-210

Packing Data

O x L,MM	Pcs pre Pkt	Pkt Per Box	Pcs per BOX	Net.wt/BOX, Kg
2.50 X 350	290	12	3480	28
3.15 X 350	85	12	1020	30
4.00 X 450	55	12	660	42

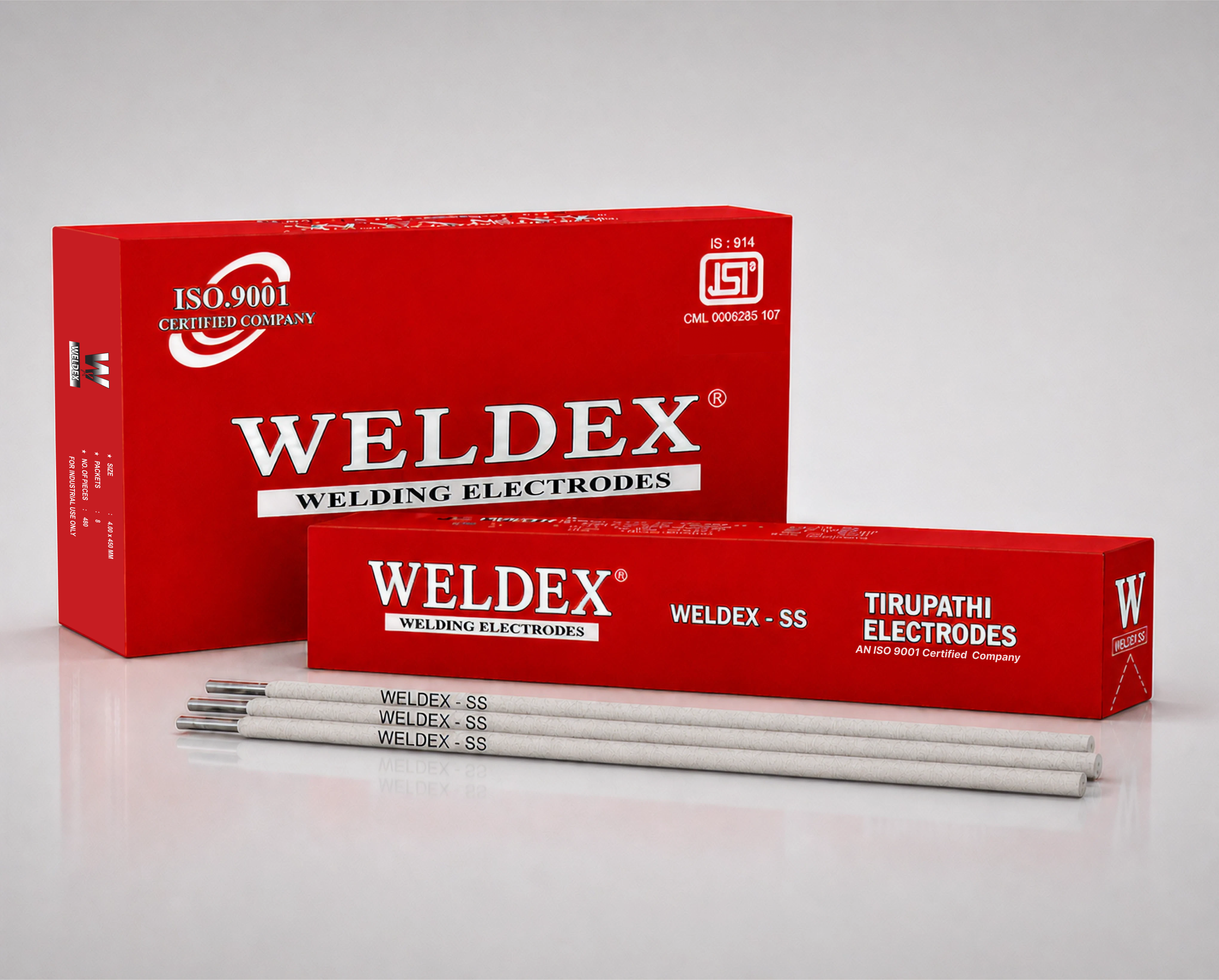

WELDEX-SS

a mild steel welding electrodes

classification : AWS SFA5.1: E-6013 IS:814 - ER 4211X

description : A Heavy Coated, Rutile Type Electrode for Radiographic Quality Welds, Suitable for Pressure Vessels, Boilers, Storage Tanks, Girder Fabrication L.P.G. Cylinders Etc.

Weld metal Chemical Composition

c	mn	si	s	p
0.085	0.55	0.21	0.020	0.025

All Weld Mechanical Composition Properties

Ultimate Tensile Strength 501.0 N/mm²

Yield Strength 403.0 N/mm

Elongation (GL=5d) 26%

Reduction in Area 68.20%

Impact (CVN) at 0°C 74 Joules avg

Welding Parameters

Size(mm)

2.50 x 350

3.15 x 350

4.00 x 350

5.00 x 350

Current(Amp.)

60-90

90-130

130-170

170-210

Packing Data

O x L,MM	Pcs pre Pkt	Pkt Per Box	Pcs per BOX	Net.wt/BOX, Kg
2.50 X 350	290	12	3480	20
3.15 X 350	85	12	1020	20
4.00 X 450	55	12	660	20
